DNS (Domain Name System) is a fundamental internet protocol responsible for translating domain names into IP addresses. DNS is intended to take on the role of a phone book for the internet; therefore, it is a universally used and trusted worldwide protocol. DNS uses port 53, which is almost always open on systems and are not be blocked to prevent DNS traffic from firewalls. Many organizations do not decide to monitor DNS traffic for malicious activity. The lack of monitoring and restrictions of the DNS protocol is the reason why attackers often abuse DNS as a way of performing cyberattacks against victim machines. This oversight can have dramatic consequences.

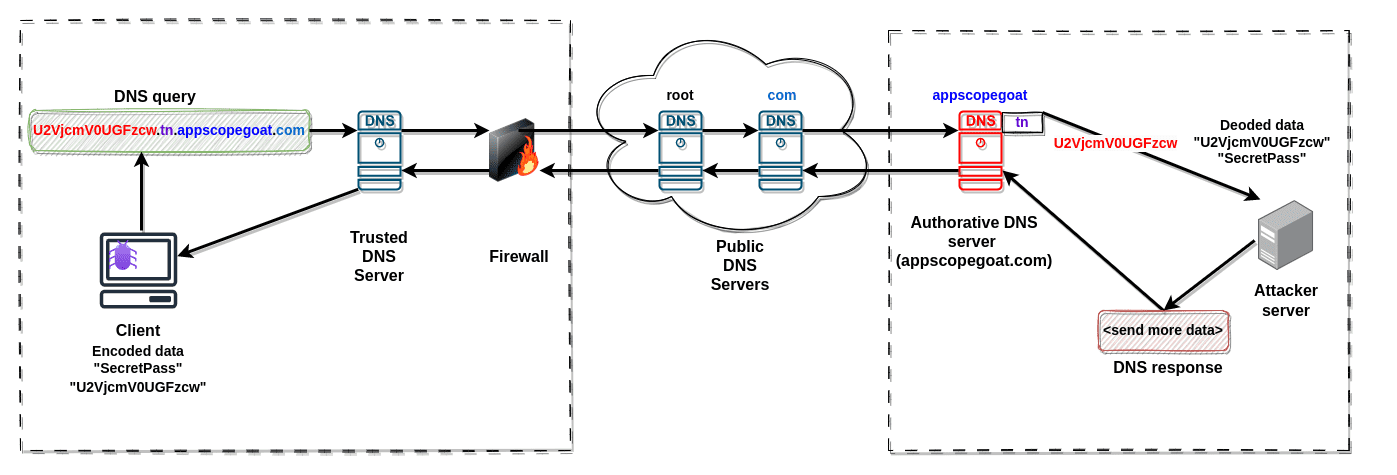

Here is the overview of the attack vector using DNS :
Examples of these attacks are:
There are several methods that can be employed to detect DNS annomalies.
This post will show how AppScope can detect DNS anomalies and send a notification using a Slack channel.
You will need:
chart_write_publicto allow push notifications

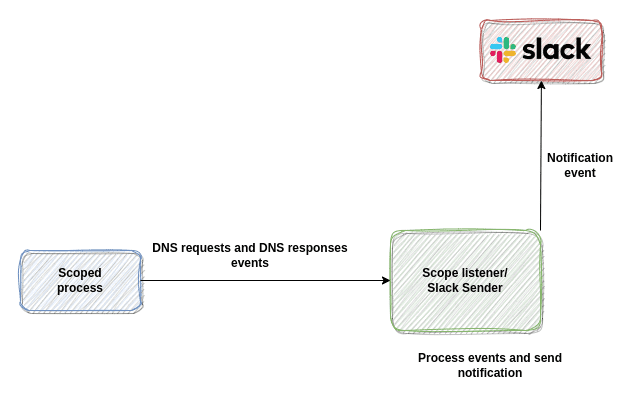

Here is the overview of the solution:
Here is the example content of AppScope configuration file
SCOPE_CONFIGURATION_FILE which will be used in this example:
metric: enable: false event: enable: true format: type: ndjson maxeventpersec: 10000 enhancefs: false watch: - type: dns name: .* field: .* value: .* transport: type: tcp host: 127.0.0.1 port: 9999 tls: enable: false cribl: enable: false
As you can see we intend to scope
dns events and send data to
127.0.0.1:9999 using TCP.
The below command allows us to run and scope a specific application
APP_TO_SCOPE with the
SCOPE_CONFIGURATION_FILE defined above
scope run --userconfig <SCOPE_CONFIGURATION_FILE> -- <APP_TO_SCOPE>
The command below allows you to start the Scope listener/Slack sender, which enables you to:
SLAC_API_TOKENto a specific
scope listener --addr 127.0.0.1:9999 --notifytoken <SLAC_API_TOKEN> --channelid <CHANNEL_ID>
To determine suspicious DNS activity, the 'scope listener' looks in DNS queries/responses for the following:

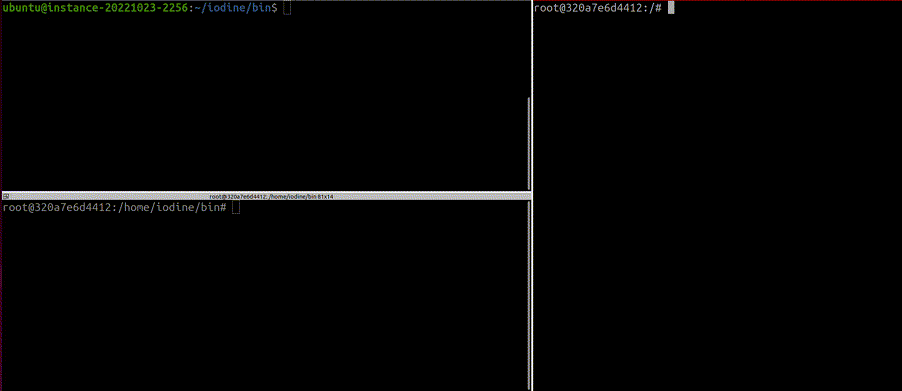

Here is the example detection of DNS tunneling which is used by iodine project

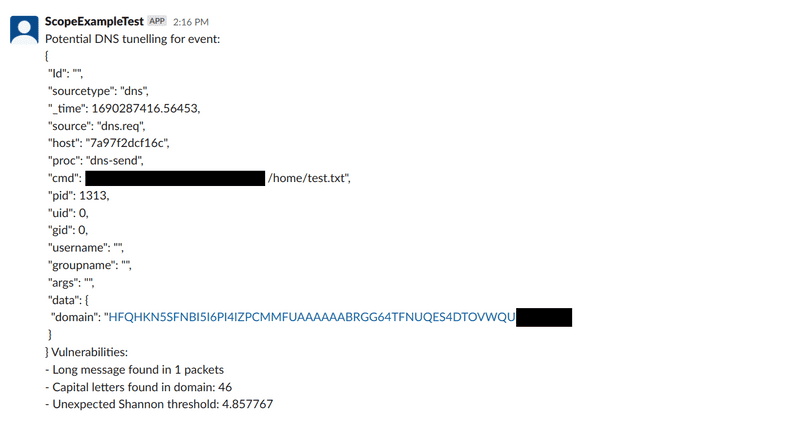

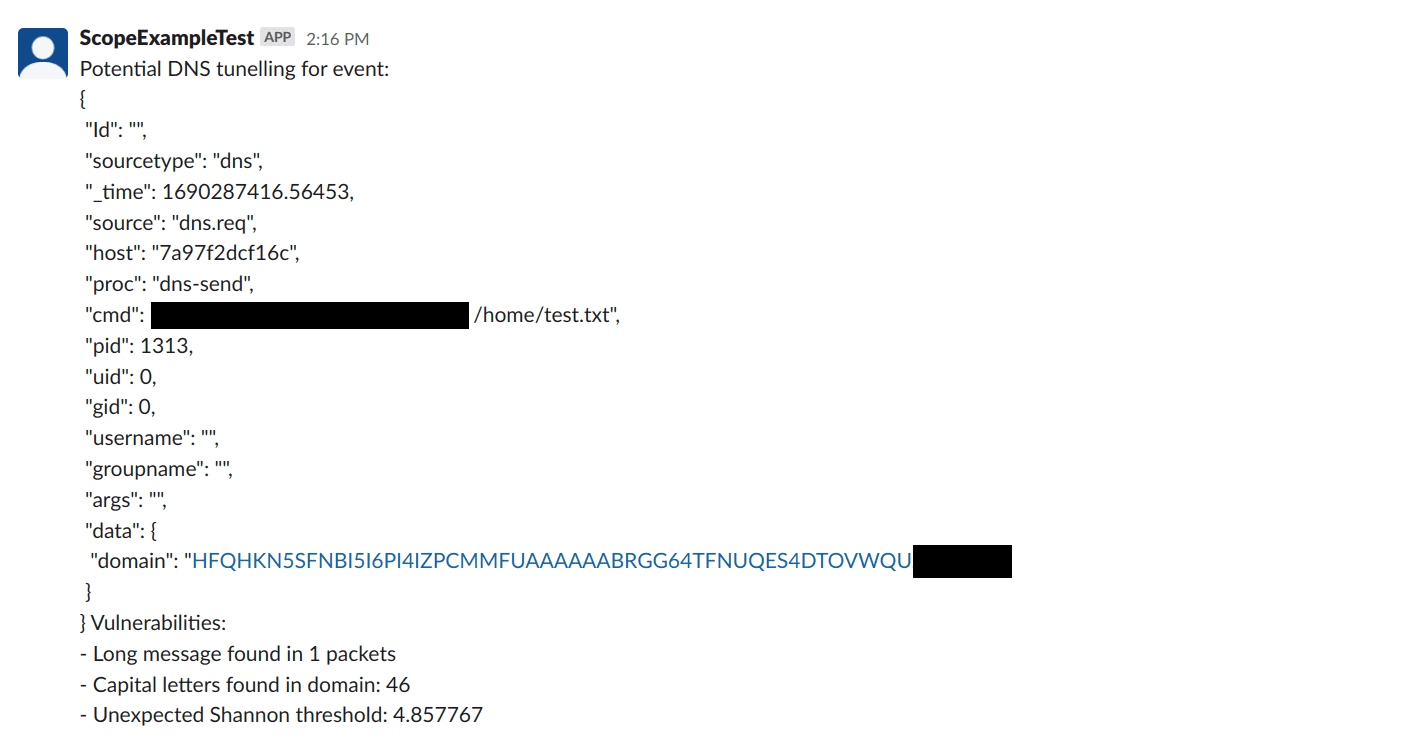

Here is the overview of example alert notification which can be seen in Slack:
The following solution was tested with the
iodine project but give it a shot on your own! Test it out thoroughly! Explore the documentation! Did the blog effectively cover the topic you were interested in? Was the content engaging and easy to understand? We want to know what stood out to you and if there's anything you wish we had included. Your feedback plays a crucial role in shaping the future of AppScope solution. It helps us understand what works well and what we can improve upon to better serve you, our valued readers.
Feel free to join our #AppScope channel in the Cribl Community Slack, where you can share your experiences using AppScope and the exciting things you uncover with it.
